A plastic part can have the right shape and still fail because its colorant was poorly matched to the resin or process. Streaks in film, weak opacity in packaging, uneven blackness in molded parts, or poor outdoor durability often trace back to how Black Masterbatch or White Masterbatch is selected and dispersed. In polymer processing, these materials do more than add color. They affect UV resistance, hiding power, surface finish, melt behavior, and batch consistency. This article explains how to judge Black Masterbatch, White Masterbatch, and Color Masterbatch by performance, process fit, defect risk, and real production cost.

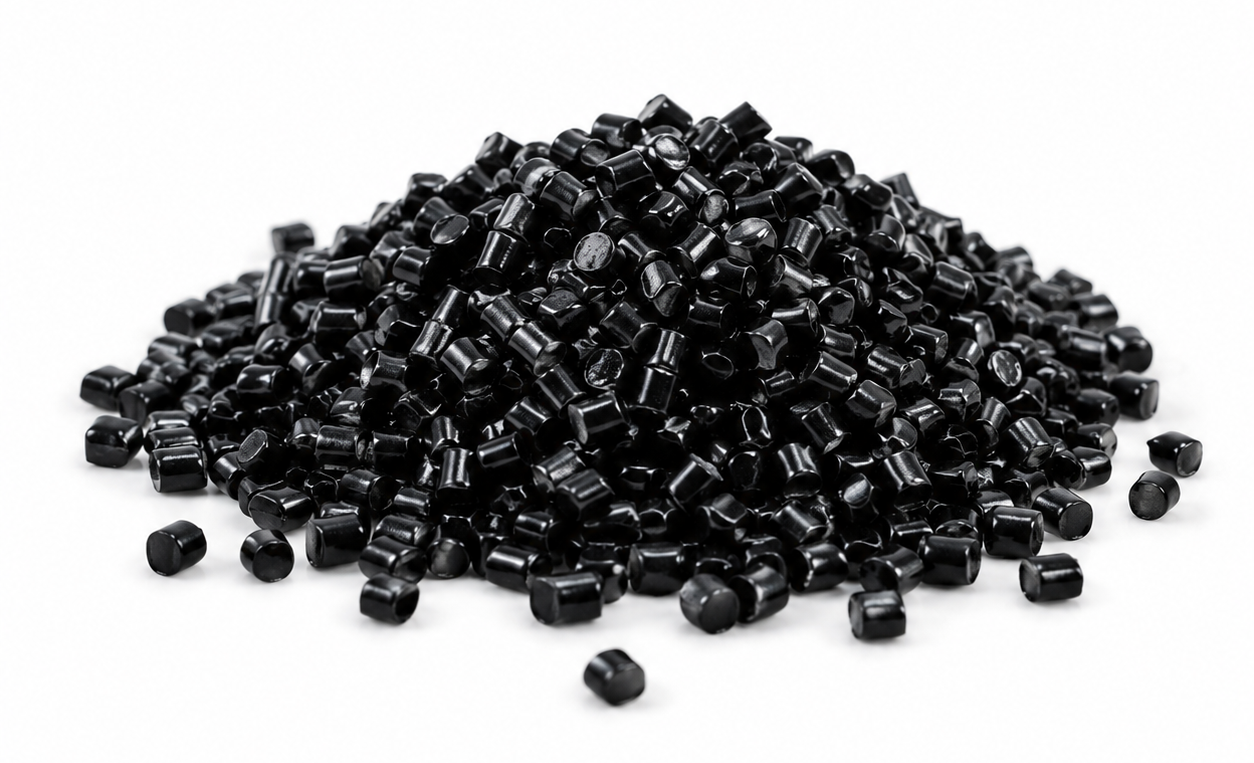

The value of Black Masterbatch is not limited to making plastic black. Carbon black improves opacity, hiding power, and UV resistance when the grade, particle size, and dispersion quality are suitable. This is why black formulations are widely used in pipes, agricultural film, geomembranes, automotive parts, cable sheathing, crates, and outdoor profiles.
A deep black appearance also depends on jetness, undertone, gloss, and tinting strength. Some grades are designed for conductivity or antistatic performance, while others focus on outdoor durability. In practice, processors usually evaluate Black Masterbatch by blackness, dispersion, UV protection, resin compatibility, and stability during long production runs. If carbon black is poorly dispersed, the product may look black but still have uneven UV protection and mechanical durability.

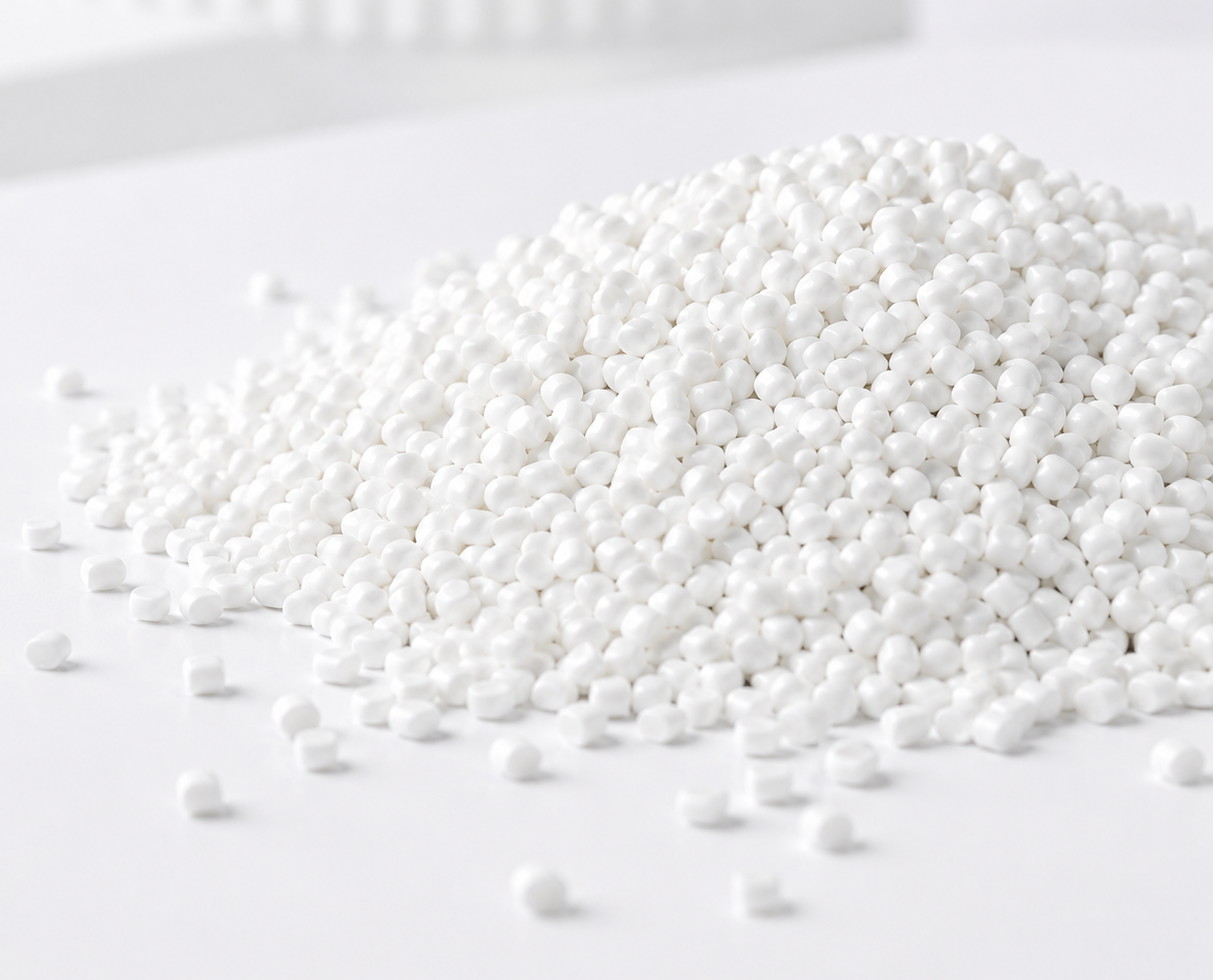

White Masterbatch depends heavily on titanium dioxide, or TiO₂, which provides whiteness, brightness, opacity, and light scattering. It is commonly used in packaging film, sheet, household products, disposable items, appliance parts, and printed substrates. A good white formulation can make thin plastic look cleaner and more uniform without requiring excessive dosage.
Mechanical performance should also be considered. Pigment loading, filler content, carrier resin, and additives can affect stiffness, impact strength, elongation, and melt flow. An overloaded white formula may improve hiding power but reduce film flexibility or make molded parts more brittle. A black formula with an unsuitable carrier may cause streaking, lower gloss, or weak fusion with the base polymer.
Common defects such as color streaks, spots, specks, weak opacity, roughness, pinholes, and gels are often linked to poor dispersion, contamination, weak mixing, or carrier mismatch. These problems may also reduce UV protection and affect product consistency.
A practical evaluation should go beyond the first trial sample. Processors should check dispersion under normal production speed, compare color under different lighting, and confirm whether the same dosage remains stable after several hours of running. Before mass production, they should also observe whether defects increase, opacity changes, or the material causes die build-up, filter pressure rise, or unstable flow. If problems appear during longer runs, the cause may be heat stability, screw design, die build-up, or additive migration rather than color strength alone.
The right masterbatch should first match the base polymer. PE, PP, and PET process at different temperatures and respond differently to carrier resin, wax, pigments, and additives. A PE-based Color Masterbatch may work well in LDPE or LLDPE film but cause compatibility problems in PP injection molding. PET applications are more demanding because drying, thermal stability, and moisture control can affect both appearance and mechanical strength.
Carrier resin compatibility is especially important. If the carrier melts too early, too late, or has a very different viscosity from the base polymer, pigments may not disperse evenly. This can lead to streaks in film, flow marks in molded parts, or unstable extrusion pressure. Matching the carrier to the polymer family and melt flow range is often more practical than simply choosing the highest pigment percentage.
Processing method is the second key factor. Injection molding needs stable melt flow, fast dispersion, and clean surfaces around gates, weld lines, ribs, and textured areas. Extrusion requires pressure stability, low die build-up, and consistent color during continuous production. Blow molding needs good melt strength and resistance to streaking as the parison stretches. Film blowing is usually the most sensitive because thin gauges quickly reveal gels, agglomerates, and uneven mixing.
Dosage should also be tested under real production conditions. A high-loading Black Masterbatch may reduce dosage, but it still needs good dispersion to spread evenly. A high-TiO₂ White Masterbatch may improve hiding power, but excessive addition can affect film strength, sealing behavior, or surface friction. The best dosage is the lowest level that meets color, opacity, mechanical, and processing requirements.
Film and sheet applications require fine dispersion, good filtration, and stable let-down behavior because thin products cannot hide undispersed particles. White film must balance opacity with tensile strength and sealing performance, while black film depends on carbon black distribution for both coverage and outdoor durability.
Pipes and profiles focus more on weathering, wall strength, and long-term consistency. Outdoor PE pipe, cable duct, and construction profiles need carbon black dispersion that supports aging resistance, not just dark appearance. Packaging has different priorities, including clean surface, printability, low odor, food-contact suitability when required, and consistent appearance across rolls or molded batches. For these products, Color Masterbatch should be selected together with the later printing, sealing, labeling, or filling process.
Troubleshooting should begin with the defect pattern rather than assumptions about the supplier. A defect across the full film width may point to formulation, mixing, or filtration. A repeated defect may come from screw contamination, equipment damage, or unstable dosing. If the problem appears only after higher temperatures or long production runs, heat stability and die build-up are more likely causes.
Many issues come from the interaction between material and process. Even a technically acceptable Black Masterbatch or White Masterbatch may fail if the feeder is inaccurate, mixing time is too short, or the screw does not provide enough shear. Regrind can make diagnosis harder because it adds unknown pigment, moisture, degradation history, and contamination risk. Before changing the formula, processors should check feeder calibration, drying conditions, screen packs, barrel temperature settings, and whether the base resin lot has changed.
Defect | Likely cause | Practical check |
Color streaks | Poor dilution, carrier mismatch, weak mixing | Compare melt flow and improve mixing consistency |
Black or white spots | Pigment agglomeration, contamination, degraded polymer | Check filtration, purge history, and pellet cleanliness |
Low opacity | Low pigment efficiency or product too thin | Test dosage against actual wall or film thickness |
Surface roughness | Large particles, filler overload, poor dispersion | Review particle size, screen pressure, and compounding quality |
Die build-up | Additive migration, wax imbalance, thermal stress | Inspect die lips and adjust temperature profile |
Batch color drift | Inconsistent pigment loading or dosing variation | Use ΔE measurement and compare batch COA |
When Black Masterbatch performs poorly, the main problems are usually uneven blackness, weak opacity, or poor outdoor durability. Low carbon black content may be one reason, but dispersion quality is often more important. Agglomerated carbon black reduces tinting strength and can leave weak areas in products that need UV protection.
Die build-up may also occur when the balance between pigment, carrier resin, wax, and processing aid does not match the machine. A test plaque may look acceptable, while continuous extrusion shows residue at the die lip after several hours. Conductive grades require even tighter control because electrical performance depends on the carbon black network inside the polymer.
White Masterbatch problems often appear as white spots, poor hiding power, yellowing, or rough texture. TiO₂ has strong optical value, but it must be well dispersed to scatter light effectively. If TiO₂ agglomerates, the product may show specks while still failing to reach the desired whiteness. Excess filler may reduce cost but can lower impact strength, increase brittleness, or create a chalky surface.
Heat and moisture should also be checked. Some white formulations may shift tone during high-temperature molding or long residence time, especially when the carrier, additives, or base resin are not stable enough. In PET or engineering plastics, moisture can cause hydrolysis, surface marks, or viscosity loss. A reliable troubleshooting plan should compare the same formulation at different temperatures, screw speeds, and residence times before blaming TiO₂ content alone.
The cheapest masterbatch per kilogram is not always the lowest-cost option in production. A low-priced material may require higher dosage, create more scrap, slow the line, or demand extra cleaning between color changes. A stronger Black Masterbatch or White Masterbatch may cost more upfront but reduce let-down ratio, improve opacity at lower addition, and stabilize production. Real cost should be calculated per finished part or per kilogram of acceptable output, not only by purchase price.
The following table gives a practical reference for common B2B market price ranges. Actual prices vary by pigment loading, carrier resin, order quantity, application grade, packaging, and delivery terms.
Masterbatch type | Common market reference range | Typical use |
General Black Masterbatch | USD 0.80–1.80/kg | Film, injection molding, extrusion, general plastic products |
High-dispersion / outdoor Black Masterbatch | USD 1.20–3.00/kg | Pipes, cable ducts, geomembranes, outdoor profiles |
Conductive or antistatic Black Masterbatch | USD 3.00–8.00/kg or higher | Electronics packaging, industrial parts, special functional products |
General White Masterbatch | USD 0.80–2.00/kg | Bags, sheet, injection parts, disposable products |
High TiO₂ White Masterbatch | USD 2.00–4.50/kg | Thin film, premium packaging, printed substrates |
Standard Color Masterbatch | USD 2.00–5.00/kg | Custom plastic coloring for PE, PP, ABS, PET and other polymers |
Special-effect Color Masterbatch | USD 5.00–15.00/kg or higher | Pearlescent, fluorescent, metallic, transparent or high-performance colors |
Pigment economics differ between black and white products. Carbon black is usually efficient for hiding power and UV protection at relatively low levels, but premium grades for high jetness, conductivity, or pipe durability can cost more. TiO₂ is one of the most important cost drivers in white formulations, so a high TiO₂ percentage must be evaluated against dispersion quality, opacity, and actual dosage. A formula with less TiO₂ but better dispersion may sometimes perform better than a heavier, poorly compounded product.
Processing efficiency also has financial value. Stable melt flow reduces machine adjustments, consistent pellets improve dosing accuracy, and cleaner dispersion lowers the chance of filter blockage or rejected rolls. For processors running multiple polymers, the wrong universal grade can create hidden costs through purging time and cross-contamination. A carefully selected Color Masterbatch can improve output stability, protect brand appearance, and reduce the quality risks that usually appear after mass production begins.
Black Masterbatch and White Masterbatch bring more value to polymer processing when they are selected for the resin, process, and final application rather than color alone. The right Color Masterbatch can improve opacity, UV resistance, surface finish, dispersion stability, and batch consistency while reducing defects and unnecessary production adjustments.
For manufacturers working with film, injection molding, extrusion, or blow molding, Foshan Hongshengde Masterbatch New Material Co., Ltd. provides masterbatch products designed to support stable processing and consistent plastic performance. A practical choice should always balance pigment quality, carrier compatibility, dosage efficiency, and real production results.
A: Black Masterbatch primarily provides opacity, UV protection, and outdoor durability, while White Masterbatch enhances whiteness, brightness, opacity, and surface smoothness in plastics.
A: Color Masterbatch influences dispersion, melt flow, opacity, and surface finish, helping maintain consistent quality and reducing defects during extrusion, injection molding, or film blowing.
A: Not always; carrier resin compatibility and melt flow must match the base polymer to prevent streaks, uneven color, or processing issues in PE, PP, or PET applications.
A: Defects include color streaks, spots, reduced opacity, surface roughness, and uneven UV protection, often caused by pigment agglomeration or improper dosing.
A: Dosage depends on pigment loading, product thickness, and desired opacity, balancing material efficiency with processing stability and visual performance.
A: Consistent dispersion, melt flow, and pigment distribution prevent color variation, maintain product performance, and reduce scrap across production runs.
